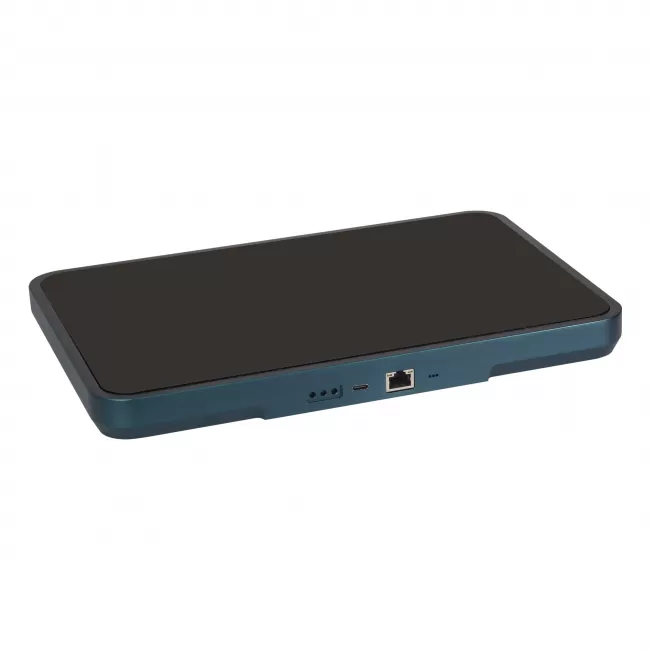

Ex10 Multipurpose UHF RFID Reader

RRU732U-NF/RRU532U-NF/RRU332U-NF is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. RRU732U-NF/IP can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.



Model

  • RRU732U-NF
  • RRU532U-NF
  • RRU332U-NF

Size

  • 300 x 200 x 25mm

RRUx32U-NF

Product Details

FEATURES

l  Self-intellectual property;

l  Designed with IMPINJ E710/E510/E310 and support ISO18000-6C(EPC C1G2) protocol tag, featuring excellent multi-tag anti-collision functionality;

l  865~868MHz/902~928MHz frequency band(frequency customization optional);

l  FHSS or Fix Frequency transmission;

l  RF output power up to 27dbm(adjustable);

l  Maximum inventory speed* up to 1000pcs/s (using E710) or 600pcs/s (using E510) or 350 pcs/s (using E310);

l  Support RSSI, Tag buffer size up to 1000PCS@96bits EPC;

l  Built-in antenna, typical reading effective distance 50cm*

l  Low power dissipation with Type-C USB 3.0 power supply (POE optional);

l  Support Type-C USB3.0 interface (Bluetooth 5.1 optional);

l  Provide DLL and Demonstration Software Source code to facilitate further development.

*Effective reading distance and tag interrogation speed are directly related to the antenna, tags, and the working environment.



CHARACTERISTICS

l Absolute Maximum Ratings

ITEM

SYMBOL

VALUE

UNIT

Power Supply

VCC

6

V

Operating Temp

TOPR

-20 ~ +60

Storage Temp

TSTR

-20 ~ +70

l  Electrical and Mechanical Specification

Under TA=25,VCC=+5V unless specified

ITEM

SYMBOL

MIN

TYP

MAX

UNIT

Power Supply

VCC


5


V

Current Dissipation

IC

7005dBm

90standby

1100(27dBm)

mA

Frequency

FREQ

-

865~868(ETSI)

902~928(FCC)

-

MHz

RF Output Power

PRF

5


27

dBm

Receive Sensitivity

SR


-74(using E310)

-81(using E510)

-87(using E710)


dBm



INTERFACE

RRUx32U-NF

NAME

(from   left to right)

ITEM

DESCRIPTION

REMARK

BLUETOOTH

Bluetooth LED

Bluetooth detected indication

BLUE

WORK

Operation LED

Tag detected indication

GREEN

POWER

Power LED

Power on indication

RED

USB INTERFACE

USB

Type-C USB3.0


BUZZER

BUZZER

Power on indication

Tag detected indication







MECHANICAL DATA (UNIT: mm)

RRUx32U-NF



ACCESSORY

RRUx32U-NF





Remark:

1. Specifications are subject to change, please pay attention to our latest version.

2. Shenzhen RoyalRay Science and Technology Co., Ltd. reserves the right to the final interpretation of the above terms.
