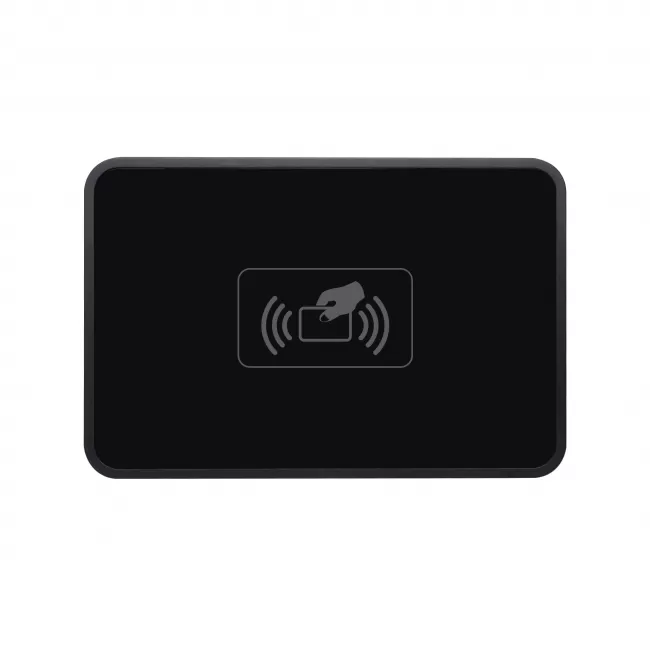

RRU1612DK-E7U/RRU1612DK-E5U/RRU1612DK-E3U are high-performance ultra-high UHF RFID desktop inventory platforms. Designed with fully independent intellectual property rights and proprietary efficient signal processing algorithms, these platforms maintain a high tag reading rate while enabling fast read/write processing of RFID tags. They can be widely used in various RFID systems such as retail, asset management, logistics, anti-counterfeiting, and production process control.
Model
Size
RRU1612DK-ExU
FEATURES
l Self-intellectual property;
l Designed with IMPINJ E710 E710/E510/E310 and support ISO18000-6C(EPC C1G2) protocol tag, featuring excellent multi-tag anti-collision functionality;
l 865~868MHz/902~928MHz frequency band(frequency customization optional);
l FHSS or Fix Frequency transmission;
l RF Output power up to 27dBm (adjustable);
l Maximum inventory speed* up to 1000pcs/s (using E710) or 600pcs/s (using E510) or 350 pcs/s (using E310);
l Built-in antenna, typical reading effective distance ＜50cm*(optional ceramic antenna with a typical reading distance greater than 2m);
l Tag buffer size up to 1000PCS@96bits EPC;
l Supports USB 2.0 interface (virtual COM port mode and emulation keyboard mode), optional Bluetooth support;
l Low power dissipation with USB power supply;
l Provide DLL and Demonstration Software Source code to facilitate further development.
l Support RSSI;
l Supports firmware upgrades.
*Effective reading distance and tag interrogation speed are directly related to the antenna, tags, and the working environment.
CHARACTERISTICS
l Absolute Maximum Ratings
ITEM | SYMBOL | VALUE | UNIT |
Power Supply | VCC | 6 | V |
Operating Temp | TOPR | -20 ～ +60 | ℃ |
Storage Temp | TSTR | -20 ～ +70 | ℃ |
l Electrical and Mechanical Specification
Under TA=25℃,VCC=+5V unless specified
ITEM | SYMBOL | MIN | TYP | MAX | UNIT |
Power Supply | VCC | 5 | V | ||
Current Dissipation | IC | 400（5dBm） | 750（27dBm） | mA | |
Frequency | FREQ | - | 865~868（ETSI） 902~928（FCC） | - | MHz |
RF Output Power | PRF | 5 | 27 | dBm | |
Receive Sensitivity | SR | -74(using E310) -81(using E510) -87(using E710) | dBm |
INTERFACE
ITEM (from left to right) | SYMBOL | DESCRIPTION | REMARK |
Bluetooth LED | BT | Bluetooth detected indication | BLUE |
Operation LED | WORK | Tag detected indication | GREEN |
Power LED | PWR | Power on indication | RED |
USB Interface | TYPE-C | Type-C USB2.0 | |
BUZZER | BEEP | Power on indication Tag detected indication |
Depending on the model and configuration, the power supply, communication, and indicator lights on the device may vary slightly. Please refer to the actual product for details.
MECHANICAL DATA (UNIT:mm)
ACCESSORY
Remark:
1. Specifications are subject to change, please pay attention to our latest version.
2. Shenzhen RoyalRay Science and Technology Co., Ltd. reserves the right to the final interpretation of the above terms.
