RRU7189AOS-SC is designed on IMPINJ E710 chip with Gen2 Extension ready. It maximizes anti-collision capability and embeds Android 10 OS platform with abundant peripheral interfaces. It is best choice for high-end RFID system in fields such as warehousing, logistics, apparel, production lines and retail.
Model

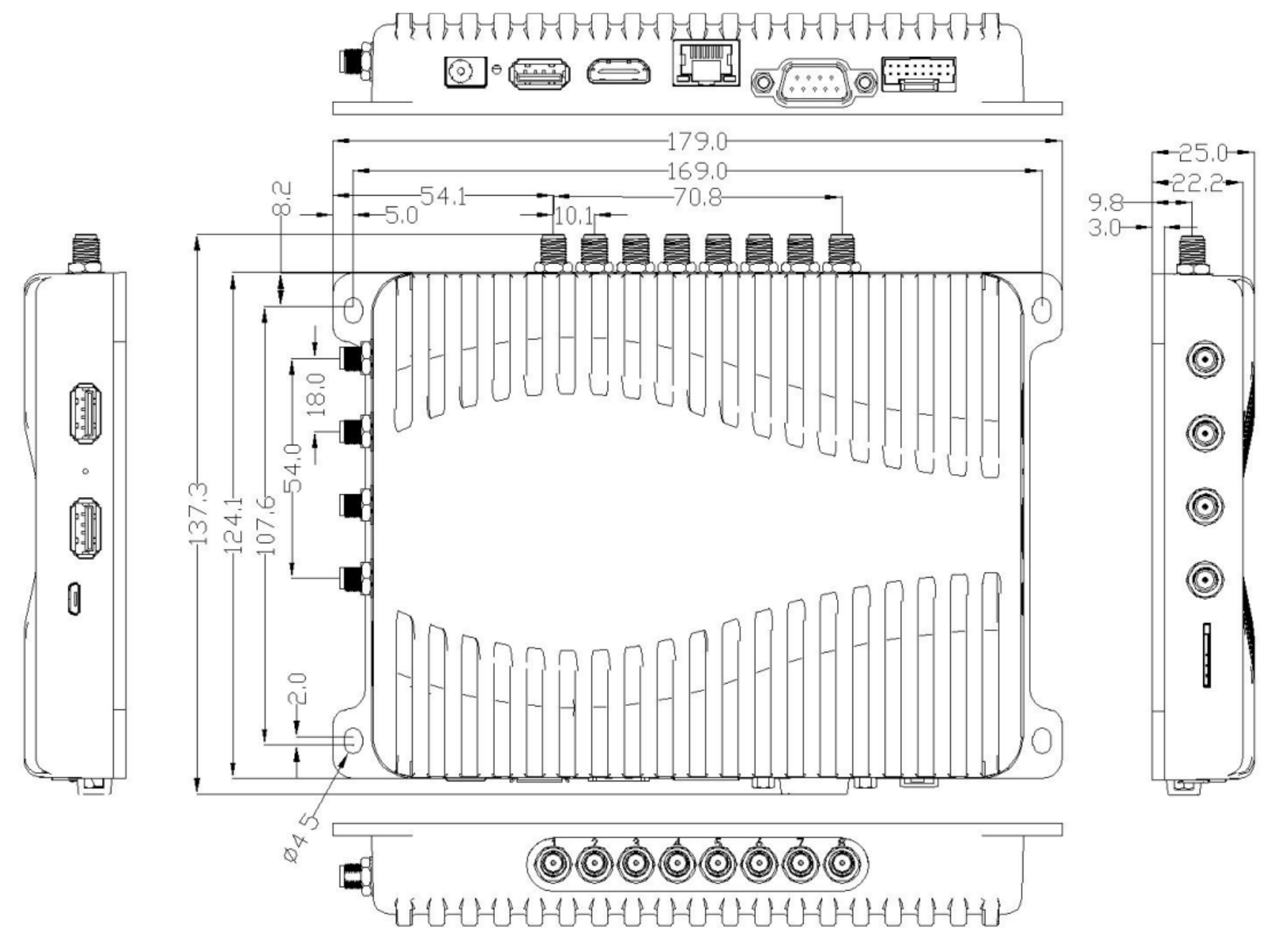

Size
RRU7189AOS-SC
FEATURES
l Independent intellectual property rights (IPR) protected design;
l 865~868MHz/902~928MHz frequency band(frequency customization optional);
l Impinj E710 based design, fully supports EPC CLASS1 G2 protocol tag;
l Capable for both Frequency Hopping Spread Spectrum (FHSS) transmission and fixed-frequency transmission;
l Supports RSSI;
l Maximum inventory speed* up to 1000pcs/s;
l SMA sockets for 16 external antennae ;
l 8 cores 64-bit ARM Cortex-a55 (UIS8581E) processor based, multi-network system intelligent LTE Cat4 module, 1.6G basic frequency, PowerVR Fentale GE8322 high-performance graphics engine and NEON multimedia processing engine;
l Android10.0 OS;
l Memories: 2GB LPDDR3 + 16GB EMMC / 4GB LPDDR3 + 64GB EMMC (optional);
l Supports 4G networks (capable with all network modes) with main and secondary 4G antenna ports;
l Supports Bluetooth 4.0;
l Supports GPS positioning;
l HDMI D Type port, supports up to 5GB/s transmission speed and 1920x1080P HD video signal output;
l Supports USB 2.0 OTG;
l Supports 100M / 10M auto-negotiation network ports;
l Supports RS232 interface;
l Low power consumption design, single +9V ~ 24V power supply;
l Supports multi-channel isolated GPIO ports (4 inputs and 4 outputs), isolated voltage VRMS > 3kV;
l Supports firmware online update, and SDK is provided for secondary development;
l Compact design with IP43 standards, capable for various applications.
CHARACTERISTICS
l Absolute Maximum Ratings
ITEM | SYMBOL | VALUE | UNIT |
Supply Voltage | VCC | 30 | V |
Operating Temperature | TOPR | -20～+65 | ℃ |
Storage Temperature | TSTR | -40～+85 | ℃ |
Humidity | H | <95%（+25℃） | %RH |
l Electrical and Mechanical Specification
Under TA = 25℃, VCC = +13.6V unless otherwise specified.
1. Electrical characteristics
ITEM | SYMBOL | MIN | TYP | MAX | UNIT |
Supply Voltage | VCC | 9 | 13.6 | 24 | V |
Current Consumption | Ic | 1.5 | 2.5 | A |
2. UHF RFID parameters
PARAMETER | SYMBOL | MIN | TYP | MAX | UNIT |
RF working frequency | Freq | 865~868(ETSI) 902~928(FCC) | MHz | ||
RF output frequency | Prf | 5 | 33 | dBm | |
Receiver sensitivity | Sr | -87 | dBm |
3. Mobile communication parameters
PARAMETER | SYMBOL | DESCRIPTION |
Frequency band | Fb | LTE-FDD: B1 B3 B5 B8 LTE-TDD: B34 B38 B39 B40 B41 WCDMA: B1 B8 GSM/EDGE: 900/1800 MHz |
Transmission power | TPrf | Class 4(2W) Class 1(1W) Class 3(0.25W):Pmax< 23dBm |
Data rate | Dbr | LTE Downlink: 150Mbps LTE Uplink: 50Mbps HSDPA: 42.2Mbps HSUPA: 11.5Mbps TD-HSDPA: 2.8Mbps |
SIM card | SC | SIM/USIM card, rated voltage: 1.8V, 3V |
4. Wi-Fi / Bluetooth parameters
PARAMETER | DESCRIPTION |
Wi-Fi | Wireless standards: 2.4/5GHz 802.11 b/g/n/a Security: WFA WPA/WPA2 Output power: Pmax <20dBm |
Bluetooth | Bluetooth characteristics: V2.1+EDR, 3.0+HS, V4.0+HS Receiver sensitivity: GFSK -94dBm, DQPSK -93dBm, 8-DPSK -87.5dBm |
5. GPS parameters
PARAMETER | DESCRIPTION |
GPS | Frequency: 1575.42MHz Carrier to Noise Ratio(CNR): 41db/Hz Sensitivity: -163dBm |
INTERFACE
1. GPS antenna
2. 4G network secondary antenna
3. 4G network main antenna
4. Wi-Fi / Bluetooth antenna
5. 4G network SIM card slot
6. DC power supply jack
PIN | SYMBOL | DESCRIPTION |
Central | PWR | +9V ~ +24V DC |
Outer | GND | Ground |
7. USB port
8. HDMI port
9. TCP/IP network port (RJ45)
10. RS232 serial COM port (DB9 Female)
ITEM | SYMBOL | DESCRIPTION |
1 | NC | Reserved |
2 | TXD | Serial COM transmitter |
3 | RXD | Serial COM receiver |
4 | NC | Reserved |
5 | GND | Signal ground |
6 | NC | Reserved |
7 | NC | Reserved |
8 | NC | Reserved |
9 | NC | Reserved |
11. GPIO port
12. Debugging / download USB port
13. USB port
14. System reset button
15. USB port
16. SMA antenna ports (ANT1 ~ ANT8)
Remark:
1. Specifications are subject to change, please pay attention to our latest version.
2. Shenzhen RoyalRay Science and Technology Co., Ltd. reserves the right to the final interpretation of the above terms.
