Based on the E710 chip design, Gen2 Extension Ready, maximizing chip potential with outstanding multi-tag anti-collision capability. The 4-port high-throughput coordination design and advanced thermal balance planning ensure consistently high performance over time. All these make it ideal for meeting the high-performance RFID system requirements in fields such as warehousing, logistics, apparel, production lines, and retail. Additionally, sub-versions based on the E510 and E310 are available.
Model
Size
RRUx182M
FEATURES
l Self-intellectual property;
l Designed with IMPINJ E710/E510/E310 and support ISO18000-6C(EPC C1G2) protocol tag, featuring excellent multi-tag anti-collision functionality;
l 865~868MHz/902~928MHz frequency band(frequency customization optional);
l FHSS or Fix Frequency transmission;
l RF output power up to 33dbm(adjustable);
l SMA sockets for 4 external antennae ;
l Effective distance up to 12m*(with external 8dbi antenna and tag E41);
l Maximum inventory speed* up to 1000pcs/s (using E710) or 600pcs/s (using E510) or 350 pcs/s (using E310);
l Support RSSI, Tag buffer size up to 1000PCS@96bits EPC;
l Low power dissipation with +4.5~5.5VDC power supply;
l Support RS232 serial communication interface (3.3V TTL level);
l High stability with air cooling and no extra heat sinking;
l Support on-the-site firmware upgrading.
*Effective reading distance and tag interrogation speed are directly related to the antenna, tags, and the working environment.
CHARACTERISTICS
l Absolute Maximum Ratings
ITEM | SYMBOL | VALUE | UNIT |
Power Supply | VCC | 6 | V |
Operating Temp | TOPR | -20 ~ +65 | ℃ |
Storage Temp | TSTR | -40 ~ +85 | ℃ |
l Electrical and Mechanical Specification
Under TA=25℃,VCC=+5.0V unless specified
ITEM | SYMBOL | MIN | TYP | MAX | UNIT |
Power Supply | VCC | 4.5 | 5 | 5.5 | V |
Current Dissipation | IC | 410 | 100（standby） | 1150(30dBm) 1500(33dBm) | mA |
Frequency | FREQ | - | 865~868(ETSI) 902~928(FCC) | - | MHz |
RF Output Power | PRF | 5 | 33 | dBm | |
Receive Sensitivity | SR | -74(using E310) -81(using E510) -87(using E710) | dBm |

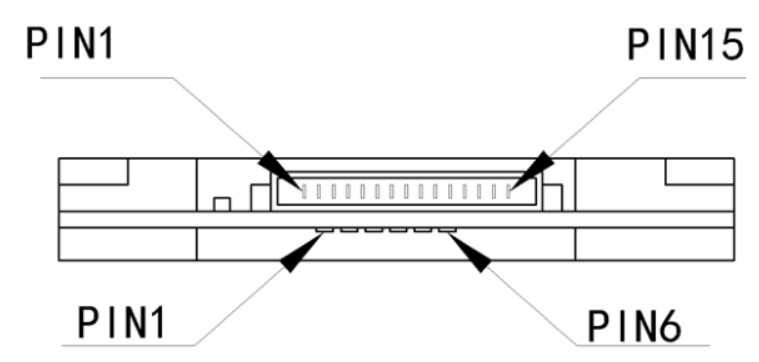

INTERFACE
No. | Pad No. | Symbol | Comment |
1 | 1 | GND | Ground |
2 | 1 | GND | Ground |
3 | 2 | VCC | Power Supply |
4 | 2 | VCC | Power Supply |
5 | 4 | GPO1 | General Output (3.3V TTL level) |
6 | GPO2 | General Output (3.3V TTL level) | |
7 | GPI1 | General Input (3.3V TTL level) | |
8 | BUZZER | Buzzer output. outputs high when activated | |
9 | 5 | RXD | Serial data input |
10 | 6 | TXD | Serial data output |
11 | NC | Reserved | |
12 | NC | Reserved | |
13 | 3 | GPI2 | General Input (3.3V TTL level) |
14 | EN | Enable. High level effective with internal 10kOhm resistor pulled up to VCC | |
15 | RS485_CTRL | RS485 direction control |
MECHANICAL DATA (UNIT:mm)
Application Information
1. When designing fixed reader, please take care of heat sinking and remember to make sure the heat sinker of the module is closely and stably attached to the reader’s bottom plate;
2. Please refer to User's Manual for detailed protocol description.
Remark:
1. Specifications are subject to change, please pay attention to our latest version.
2. Shenzhen RoyalRay Science and Technology Co., Ltd. reserves the right to the final interpretation of the above terms.
